Inductors
Inductor for Power Lines
MWPU1608F1R0MT
Weight:
0
g

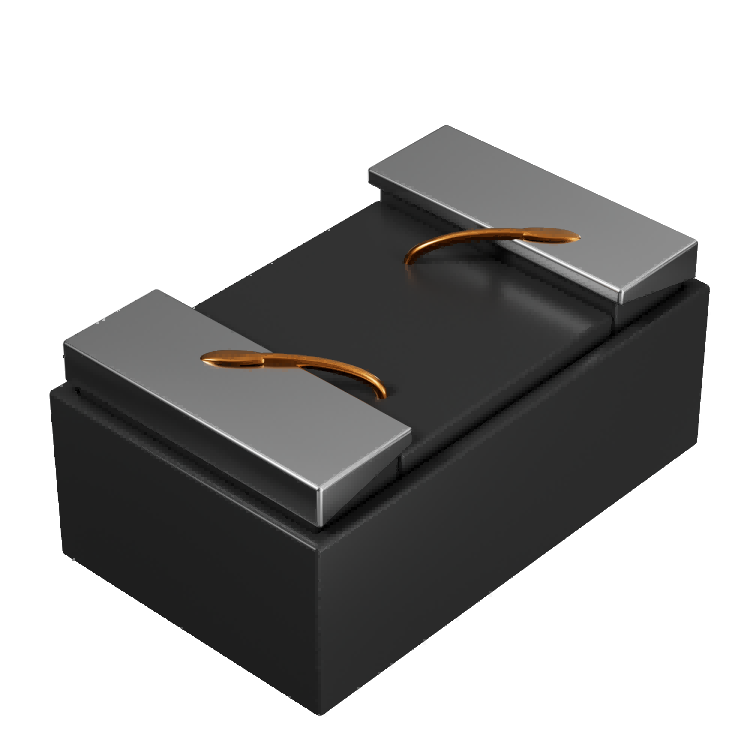

Sunlord MWPU1608 Series MWPU1608F1R0MT
Model
:
MWPU1608F1R0MT
Catalogue
MWPU1608 Series Catalogue English (Download)
MWPU1608 Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
MWPU1608F1R0MT
General
Series
MWPU1608
Structure
Wire Wound
Dimensions
Length
1.65mm
Width
1.00mm
Thick Max.
1.00mm
Electrical
Inductance
1μH
Inductance Tolerance
±20%
L/Q Test Freq.
1MHz
Heat Rating Current(Irms)
0.88A
Saturation Current(Isat)
0.8A
DCR Max. (Ω)
0.25Ω
SRF
170MHz
Quality Factor (Q) Min.
/
Packaging
Min. Packaging (Pcs)
-
