Inductors
Inductor for Power Lines

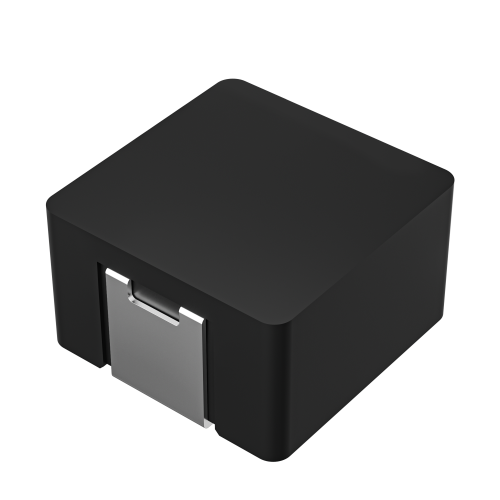

AMP1004HR22MT
Sunlord AMP1004H Series AMP1004HR22MT
Model
:
AMP1004HR22MT
Catalogue
AMP1004H Series Catalogue English (Download)
AMP1004H Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
AMP1004HR22MT
Inductors
Series
AMP1004H
Structure
Wire Wound
Inductance
0.22μH
Inductance Tolerance
±20%
Quality Q
/
L/Q Test Freq. (MHz)
100KHz/1V
SRF (MHz)
/
DCR Max. (Ω)
0.001
Saturation Current (A) Isat
48
Heat Rating Current (A) Irms
35
Body Length (mm)
11
Body Width (mm)
10
Body Thick (mm)
3.8
Automotive
Yes
Min. Packaging (Pcs)
-
