Inductors
Inductor for Power Lines
MWPH1412AR47MT
Weight:
0
g

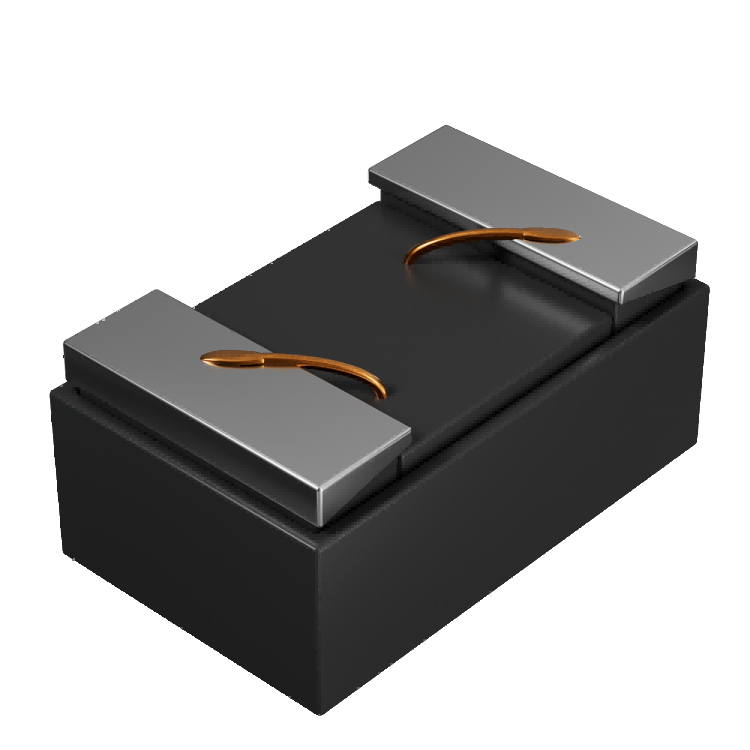

Sunlord MWPH1412 Series MWPH1412AR47MT
Model
:
MWPH1412AR47MT
Catalogue
MWPH1412 Series Catalogue English (Download)
MWPH1412 Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
MWPH1412AR47MT
General
Series
MWPH1412
Structure
Wire Wound
Dimensions
Length
1.40mm
Width
1.20mm
Thick Max.
0.65mm
Electrical
Inductance
0.47μH
Inductance Tolerance
±20%
L/Q Test Freq.
1MHz
Heat Rating Current(Irms)
1.05A
Saturation Current(Isat)
2.65A
DCR Max. (Ω)
0.25Ω
SRF
200MHz
Quality Factor (Q) Min.
/
Packaging
Min. Packaging (Pcs)
-
