BV-SMDJ51CA

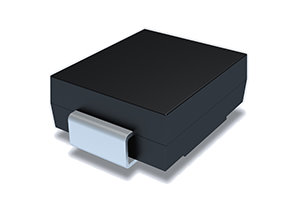

Bencent TVS BV-SMDJ51CA
Model
:
BV-SMDJ51CA
Catalogue
BV-SMDJ51CA Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-SMDJ51CA
Overvoltage Protection Components
Transient Voltage Suppressor (TVS)
Type
Bi
Repetitive Peak Off-State Voltage (VDRM)
51V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
1.0μA
Minimum Breakdown Voltage (VBR)
56.7V
Maximum Breakdown Voltage (VBR)
62.7V
Maximum Reverse Leakage Current (IR)
1.0mA
Maximum Clampling Voltage (VC)@IPP
82.4V @ 36.4A
Surge Waveform
10/1000μs
Peak Pulse Power (PPP)
3000W
Package
SMC
Mark
D51C
Body Length (L)
8.25mm
Body Width (W)
6.15mm
Body Height (H)
2.95mm
Min. Packaging (Pcs)
3000
