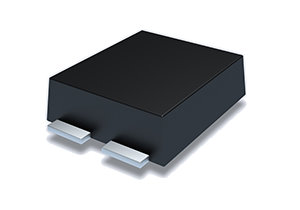

BV-SMCT-58CA
Bencent TVS BV-SMCT-58CA
Model
:
BV-SMCT-58CA
Catalogue
BV-SMCT-58CA Catalogue English (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Bencent
Model
BV-SMCT-58CA
Overvoltage Protection Components
Transient Voltage Suppressor (TVS)
Type
Bi
Repetitive Peak Off-State Voltage (VDRM)
58V
Maximum Repetitive Peak Off-State Current (IDRM 25℃)
1.0μA
Minimum Breakdown Voltage (VBR)
64.4V
Maximum Breakdown Voltage (VBR)
71.2V
Maximum Reverse Leakage Current (IR)
1.0mA
Maximum Clampling Voltage (VC)@IPP
93.6V @ 32.1A
Surge Waveform
10/1000μs
Peak Pulse Power (PPP)
(Pin1,33000to 2)W
Package
SMC-T
Mark
C58CT
Body Length (L)
8.0mm
Body Width (W)
5.9mm
Body Height (H)
2.0mm
Min. Packaging (Pcs)
3000
