Inductors
Inductor for Power Lines
AMP1004H2R2MT
Weight:
0
g

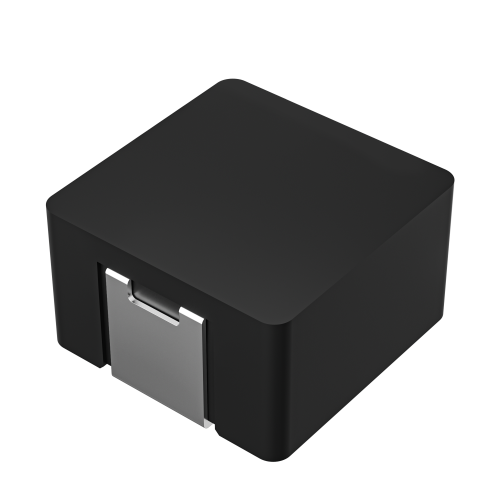

Sunlord AMP1004H Series AMP1004H2R2MT
Model
:
AMP1004H2R2MT
Catalogue
AMP1004H Series Catalogue English (Download)
AMP1004H Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
AMP1004H2R2MT
General
Series
AMP1004H
Structure
Wire Wound
Automotive
Yes
Dimensions
Length
11.00mm
Width
10.00mm
Thick Max.
3.80mm
Electrical
Inductance
2.2μH
Inductance Tolerance
±20%
L/Q Test Freq.
100KHz/1V
Heat Rating Current(Irms)
13.5A
Saturation Current(Isat)
14.4A
DCR Max. (Ω)
0.0075Ω
SRF
/
Quality Factor (Q) Min.
/
Packaging
Min. Packaging (Pcs)
-
