WTH0415TR33MT
Weight:
0
g

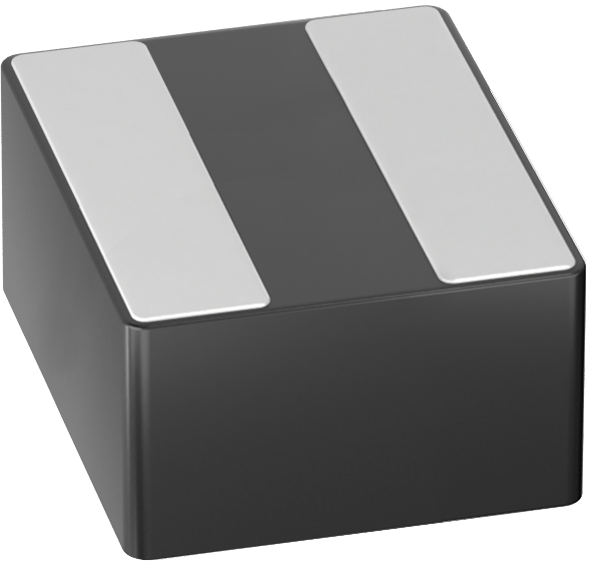

Sunlord WTH04 Series WTH0415TR33MT
Model
:
WTH0415TR33MT
Catalogue
WTH04 Series Catalogue English (Download)
WTH04 Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
WTH0415TR33MT
General
Series
WTH04
Structure
Wire Wound
Dimensions
Length
4.00mm
Width
4.00mm
Thick Max.
1.50mm
Electrical
Inductance
0.33μH
Inductance Tolerance
±20%
L/Q Test Freq.
1M,1V
Heat Rating Current(Irms)
13.9A
Saturation Current(Isat)
13A
DCR Max. (Ω)
0.0048Ω
SRF
83MHz
Quality Factor (Q) Min.
/
Packaging
Min. Packaging (Pcs)
3000
