WTXE323012TR68MT
Weight:
0
g

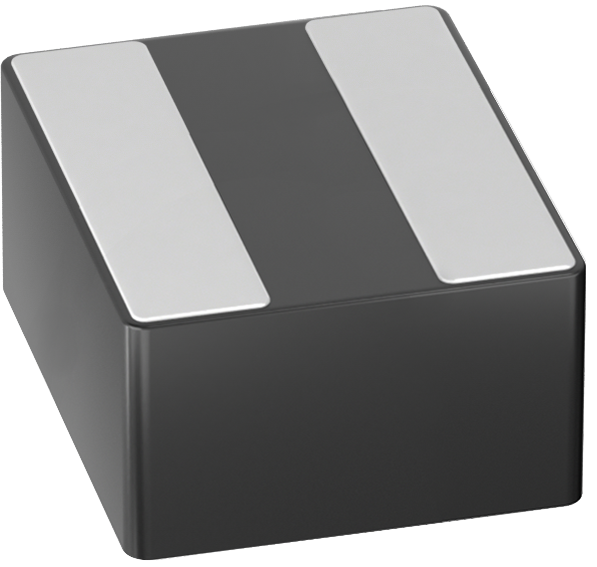

Sunlord WTXE3230 Series WTXE323012TR68MT
Model
:
WTXE323012TR68MT
Catalogue
WTXE3230 Series Catalogue English (Download)
WTXE3230 Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
WTXE323012TR68MT
General
Series
WTXE3230
Structure
Wire Wound
Dimensions
Length
3.20mm
Width
3.00mm
Thick Max.
1.20mm
Electrical
Inductance
0.68μH
Inductance Tolerance
±20%
L/Q Test Freq.
1M,1V
Heat Rating Current(Irms)
7A
Saturation Current(Isat)
7A
DCR Max. (Ω)
0.016Ω
SRF
49MHz
Quality Factor (Q) Min.
/
Packaging
Min. Packaging (Pcs)
1000
