Inductors
Inductor for Power Lines
WTXE1330T1R0MT

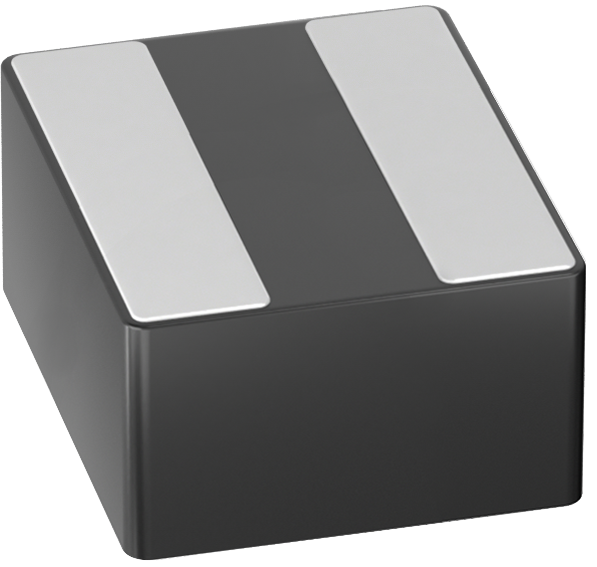

Sunlord WTXE13 Series WTXE1330T1R0MT
Model
:
WTXE1330T1R0MT
Catalogue
WTXE13 Series Catalogue English (Download)
WTXE13 Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
WTXE1330T1R0MT
Inductors
Series
WTXE13
Structure
Wire Wound
Inductance
1μH
Inductance Tolerance
±20%
Quality Q
/
L/Q Test Freq. (MHz)
1M,1V
SRF (MHz)
16.1
DCR Max. (Ω)
0.00291
Saturation Current (A) Isat
25
Heat Rating Current (A) Irms
17
Body Length (mm)
12.5
Body Width (mm)
12.5
Body Thick (mm)
3
Automotive
No
Min. Packaging (Pcs)
500
