WTX0624H-R56MTW01
Weight:
0
g

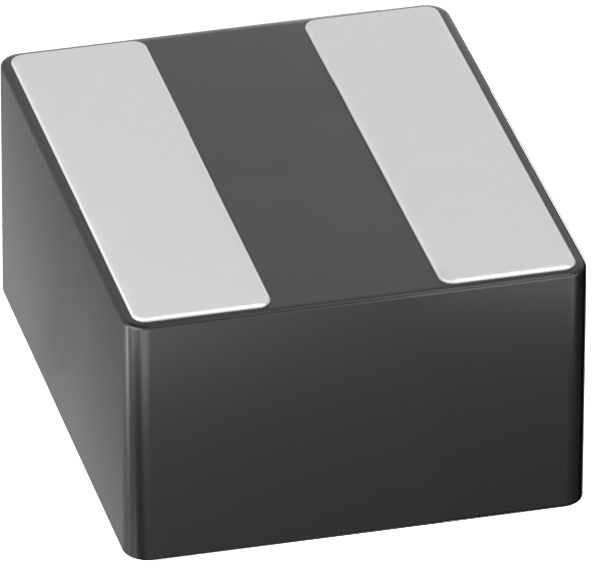

Sunlord WTX06 Series WTX0624H-R56MTW01
Model
:
WTX0624H-R56MTW01
Catalogue
WTX06 Series Catalogue English (Download)
WTX06 Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
WTX0624H-R56MTW01
General
Series
WTX06
Structure
Wire Wound
Dimensions
Length
7.25mm
Width
6.60mm
Thick Max.
2.40mm
Electrical
Inductance
0.56μH
Inductance Tolerance
±20%
L/Q Test Freq.
0.1M,1V
Heat Rating Current(Irms)
11.7A
Saturation Current(Isat)
22A
DCR Max. (Ω)
0.0065Ω
SRF
40.5MHz
Quality Factor (Q) Min.
/
Packaging
Min. Packaging (Pcs)
2000
