WTX0615T1R0MT
Weight:
0
g

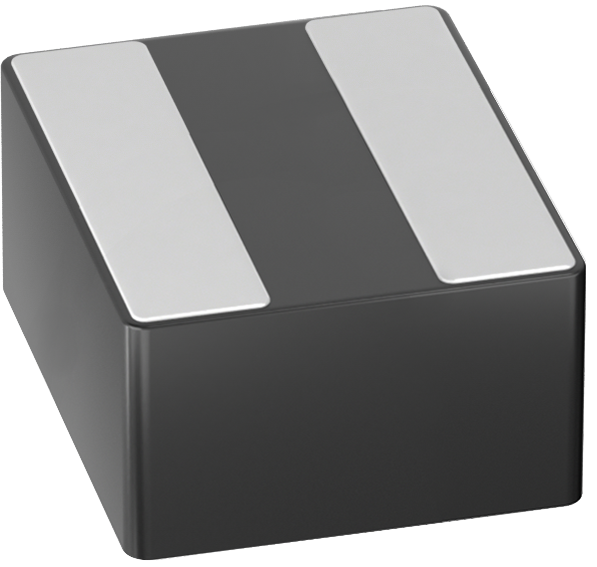

Sunlord WTX06 Series WTX0615T1R0MT
Model
:
WTX0615T1R0MT
Catalogue
WTX06 Series Catalogue English (Download)
WTX06 Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
WTX0615T1R0MT
General
Series
WTX06
Structure
Wire Wound
Dimensions
Length
6.40mm
Width
6.60mm
Thick Max.
1.50mm
Electrical
Inductance
1μH
Inductance Tolerance
±20%
L/Q Test Freq.
1.5M,1V
Heat Rating Current(Irms)
11.5A
Saturation Current(Isat)
11A
DCR Max. (Ω)
0.0115Ω
SRF
25.3MHz
Quality Factor (Q) Min.
/
Packaging
Min. Packaging (Pcs)
2000
