Inductors
Inductor for Power Lines
WTH0415T1R0MT

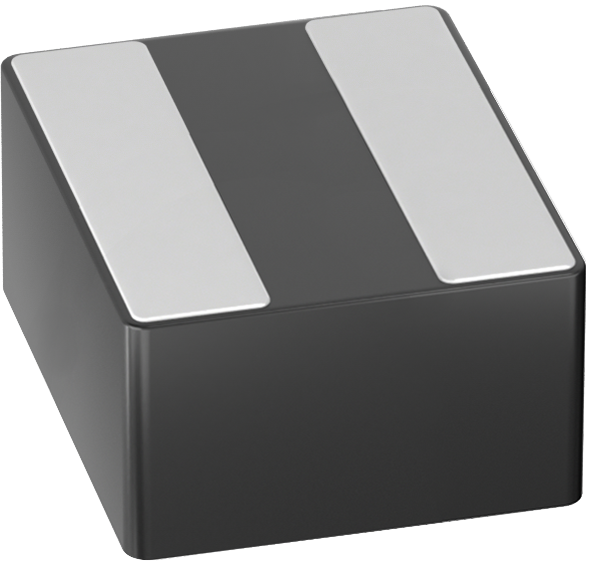

Sunlord WTH04 Series WTH0415T1R0MT
Model
:
WTH0415T1R0MT
Catalogue
WTH04 Series Catalogue English (Download)
WTH04 Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
WTH0415T1R0MT
Inductors
Series
WTH04
Structure
Wire Wound
Inductance
1μH
Inductance Tolerance
±20%
Quality Q
/
L/Q Test Freq. (MHz)
1M,1V
SRF (MHz)
40
DCR Max. (Ω)
0.0125
Saturation Current (A) Isat
6
Heat Rating Current (A) Irms
8.3
Body Length (mm)
4
Body Width (mm)
4
Body Thick (mm)
1.5
Automotive
No
Min. Packaging (Pcs)
3000
