SDWL3225FW1R0JSTF
Weight:
0
g

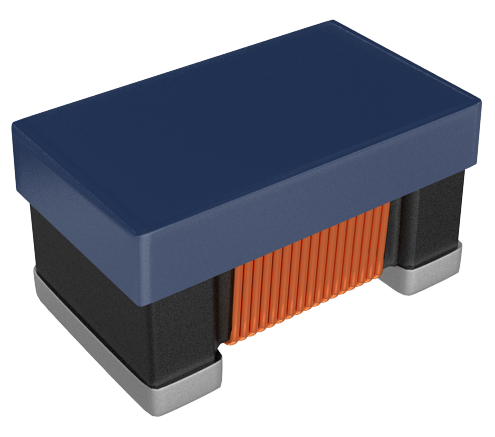

Sunlord SDWL3225FW Series SDWL3225FW1R0JSTF
Model
:
SDWL3225FW1R0JSTF
Catalogue
SDWL3225FW Series Catalogue English (Download)
SDWL3225FW Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
SDWL3225FW1R0JSTF
General
Series
SDWL3225FW
Structure
Wire Wound
Dimensions
Length
3.65mm
Width
2.95mm
Thick Max.
2.70mm
Electrical
Inductance
1μH
Inductance Tolerance
±5%
L/Q Test Freq.
7.9MHz
Heat Rating Current(Irms)
0.4A
DCR Max. (Ω)
0.7Ω
SRF
120MHz
Quality Factor (Q) Min.
30
Packaging
Min. Packaging (Pcs)
1000
