Inductors
General Circuit Inductors
SDWL2520FW120JSTF

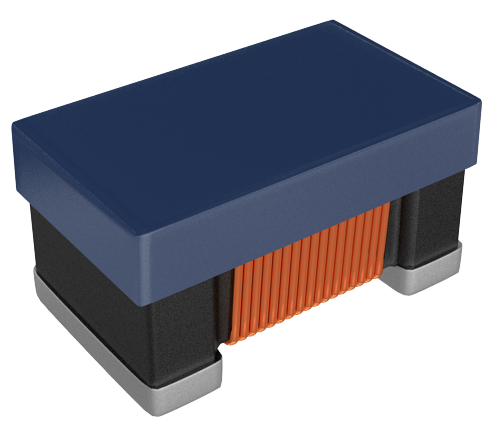

Sunlord SDWL2520FW Series SDWL2520FW120JSTF
Model
:
SDWL2520FW120JSTF
Catalogue
SDWL2520FW Series Catalogue English (Download)
SDWL2520FW Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
SDWL2520FW120JSTF
Inductors
Series
SDWL2520FW
Structure
Wire Wound
Inductance
12μH
Inductance Tolerance
±5%
Quality Q
15
L/Q Test Freq. (MHz)
7.9
SRF (MHz)
40
DCR Max. (Ω)
3.5
Saturation Current (A) Isat
/
Heat Rating Current (A) Irms
0.25
Body Length (mm)
2.92
Body Width (mm)
2.79
Body Thick (mm)
2.29
Automotive
No
Min. Packaging (Pcs)
2000
