SDWL2012FW5R6KSTF

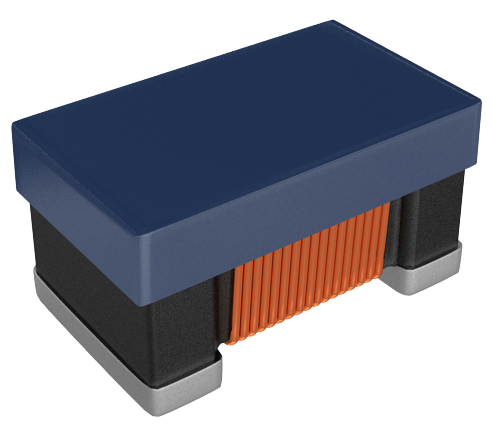

Sunlord SDWL2012FW Series SDWL2012FW5R6KSTF
Model
:
SDWL2012FW5R6KSTF
Catalogue
SDWL2012FW Series Catalogue English (Download)
SDWL2012FW Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
SDWL2012FW5R6KSTF
Inductors
Series
SDWL2012FW
Structure
Wire Wound
Inductance
5.6μH
Inductance Tolerance
±10%
Quality Q
15
L/Q Test Freq. (MHz)
7.9
SRF (MHz)
50
DCR Max. (Ω)
3
Saturation Current (A) Isat
/
Heat Rating Current (A) Irms
0.13
Body Length (mm)
2.29
Body Width (mm)
1.73
Body Thick (mm)
1.55
Automotive
No
Min. Packaging (Pcs)
2000
