Inductors
General Circuit Inductors
SDWL2012FW4R7MSTF
Weight:
0
g

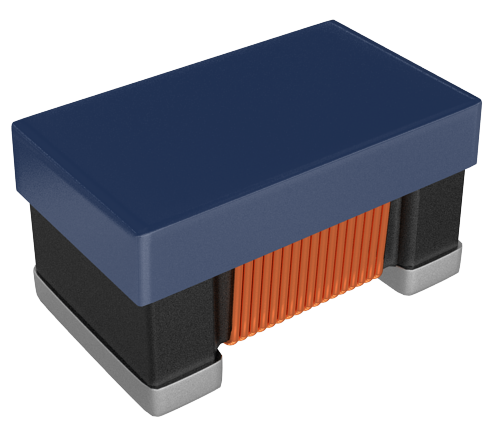

Sunlord SDWL2012FW Series SDWL2012FW4R7MSTF
Model
:
SDWL2012FW4R7MSTF
Catalogue
SDWL2012FW Series Catalogue English (Download)
SDWL2012FW Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
SDWL2012FW4R7MSTF
General
Series
SDWL2012FW
Structure
Wire Wound
Dimensions
Length
2.29mm
Width
1.73mm
Thick Max.
1.55mm
Electrical
Inductance
4.7μH
Inductance Tolerance
±20%
L/Q Test Freq.
7.9MHz
Heat Rating Current(Irms)
0.14A
DCR Max. (Ω)
2.8Ω
SRF
43MHz
Quality Factor (Q) Min.
15
Packaging
Min. Packaging (Pcs)
2000
