MWSA1204S-1R0MT

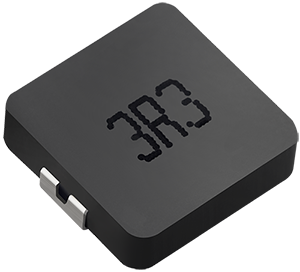

Sunlord MWSA12 Series MWSA1204S-1R0MT
Model
:
MWSA1204S-1R0MT
Catalogue
MWSA12 Series Catalogue English (Download)
MWSA12 Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
MWSA1204S-1R0MT
Inductors
Series
MWSA12
Structure
Wire Wound
Inductance
1.0μH
Inductance Tolerance
±20%
Quality Q
/
L/Q Test Freq. (MHz)
0.1M,1V
SRF (MHz)
/
DCR Max. (Ω)
0.0075
Saturation Current (A) Isat
28
Heat Rating Current (A) Irms
20
Body Length (mm)
12.8
Body Width (mm)
13.45
Body Thick (mm)
4
Automotive
No
Min. Packaging (Pcs)
500
