Inductors
Inductor for Power Lines
MPHM160809S2R2NTY02
Weight:
0
g

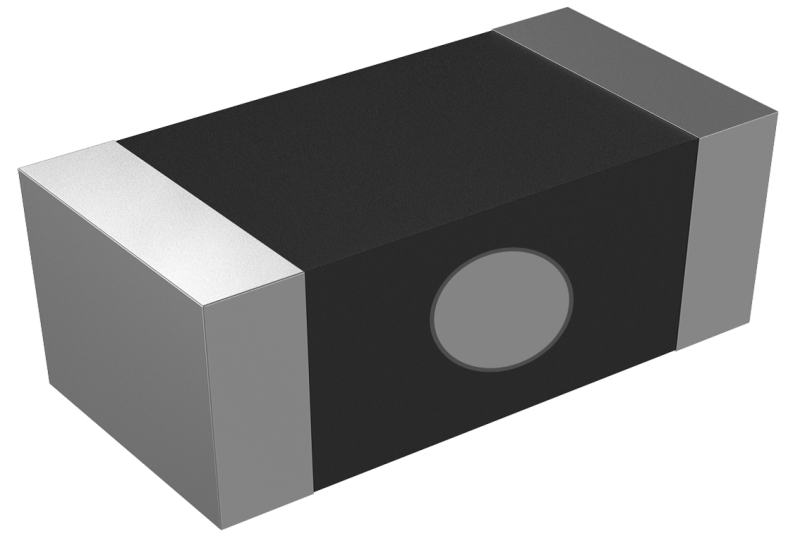

Sunlord MPHM1608 Series MPHM160809S2R2NTY02
Model
:
MPHM160809S2R2NTY02
Catalogue
MPHM1608 Series Catalogue English (Download)
MPHM1608 Series Catalogue Chinese (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Sunlord
Model
MPHM160809S2R2NTY02
General
Series
MPHM1608
Structure
Multilayer
Dimensions
Length
1.60mm
Width
1.00mm
Thick Max.
1.00mm
Electrical
Inductance
2.2μH
Inductance Tolerance
±30%
L/Q Test Freq.
1M
Heat Rating Current(Irms)
0.9A
Saturation Current(Isat)
0.48A
DCR Max. (Ω)
0.35Ω
SRF
70MHz
Quality Factor (Q) Min.
/
Packaging
Min. Packaging (Pcs)
3000
