EEUTP1V821
Weight:
4.7
g

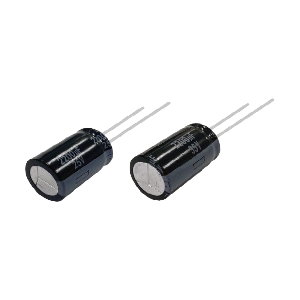

Panasonic TP-A Series EEUTP1V821
Model
:
EEUTP1V821
Catalogue
TP-A Series Catalogue English (Download)
TP-A Series Catalogue Chinese (Download)
TP-A Series Catalogue Japanese (Download)
3D Data
3D EEUTP1V821 (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUTP1V821
General
Appearance
Sheathinges other than a P.V.C. sleeve (metal case)
Series
TP-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
12.50mm
Length
25.00mm
Electrical
Capacitance
820.00µf
Impedance-1 freq.
100000Hz
Impedance-1 Max.
30mΩ
Rated Ripple Current-1
2180mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Endurance
4000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
35.0V
Leakage current .Max
287µA
Environmental
Category temperature range
－40℃ ～ ＋135°C
Packaging
Packing Specification
Bulk (no lead wire or terminal forming), bag packing
Min. Packaging (Pcs)
200
