EEUHD1A682
Weight:
0
g

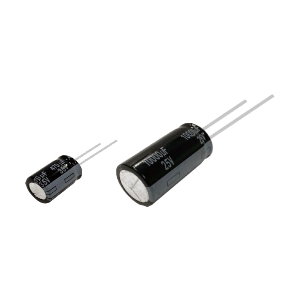

Panasonic HD-A Series EEUHD1A682
Model
:
EEUHD1A682
Catalogue
HD-A Series Catalogue English (Download)
HD-A Series Catalogue Chinese (Download)
HD-A Series Catalogue Japanese (Download)
3D Data
3D EEUHD1A682 (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUHD1A682
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
HD-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
12.50mm
Length
25.00mm
Electrical
Capacitance
6800.00µF
Rated Ripple Current-1
1570mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.34
Rated voltage
10.0V
Leakage current .Max
680µA
Environmental
Category temperature range
－55℃ ～ ＋105°C
Packaging
Min. Packaging (Pcs)
2000
