Weight: 1.77 g

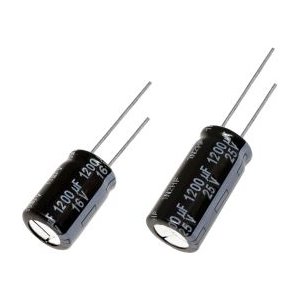

Panasonic FS-A Series EEUFS1C122LB

Model: EEUFS1C122LB

Catalogue

Catalogue

FS-A Series Catalogue English (Download)

FS-A Series Catalogue Chinese (Download)

3D Data

3D Data

3D EEUFS1C122LB (Download)

Contact us about this product

Manufacturer
Panasonic

Model
EEUFS1C122LB

General

Appearance
P.E.T. sleeve sheathing (metal case)

Series
FS-A

Mounting

Mounting Method
Radial lead type

Dimensions

Lead (terminal) Pitch
5.0mm

Diameter
8.00mm

Length
20.00mm

Electrical

Capacitance
1200.00µf

Impedance-1 freq.
100000Hz

Impedance-1 Max.
30mΩ

Rated Ripple Current-1
1560mA

Rated ripple current-1 (unit)
ｍArms

Rated ripple current-1 freq.
100000Hz

Endurance
9000h

Capacitance Tolerance
±20%

Polarity type
Polar

Dissipation Factor (DF) Max.
0.16

Rated voltage
16.0V

Leakage current .Max
192µA

Environmental

Category temperature range
－40℃ ～＋105°C

Packaging

Packing Specification
Lead taping (ammo packing), standard

Min. Packaging (Pcs)
1000
