EEUFS1A362B
Weight:
3.93
g

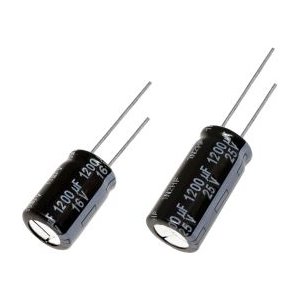

Panasonic FS-A Series EEUFS1A362B
Model
:
EEUFS1A362B
Catalogue
FS-A Series Catalogue English (Download)
FS-A Series Catalogue Chinese (Download)
3D Data
3D EEUFS1A362B (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUFS1A362B
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
FS-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
12.50mm
Length
20.00mm
Electrical
Capacitance
3600.00µF
Impedance-1 freq.
100000Hz
Impedance-1 Max.
18mΩ
Rated Ripple Current-1
2600mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Endurance
10000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.23
Rated voltage
10.0V
Leakage current .Max
360µA
Environmental
Category temperature range
－40℃ ～ ＋105°C
Packaging
Packing Specification
Lead taping (ammo packing), standard
Min. Packaging (Pcs)
500
