Weight: 4.72 g

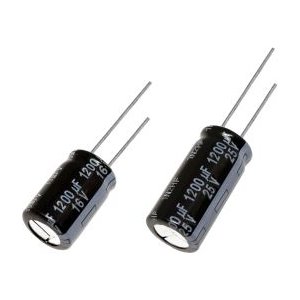

Panasonic FS-A Series EEUFS0J512B

Model: EEUFS0J512B

Catalogue

Catalogue

FS-A Series Catalogue English (Download)

FS-A Series Catalogue Chinese (Download)

3D Data

3D Data

3D EEUFS0J512B (Download)

Contact us about this product

Manufacturer
Panasonic

Model
EEUFS0J512B

General

Appearance
P.E.T. sleeve sheathing (metal case)

Series
FS-A

Mounting

Mounting Method
Radial lead type

Dimensions

Lead (terminal) Pitch
5.0mm

Diameter
12.50mm

Length
25.00mm

Electrical

Capacitance
5100.00µF

Impedance-1 freq.
100000Hz

Impedance-1 Max.
15mΩ

Rated Ripple Current-1
3190mA

Rated ripple current-1 (unit)
ｍArms

Rated ripple current-1 freq.
100000Hz

Endurance
10000h

Capacitance Tolerance
±20%

Polarity type
Polar

Dissipation Factor (DF) Max.
0.3

Rated voltage
6.3V

Leakage current .Max
321.3µA

Environmental

Category temperature range
－40℃ ～＋105°C

Packaging

Packing Specification
Lead taping (ammo packing), standard

Min. Packaging (Pcs)
500
