EEUFM1H151E
Weight:
0
g

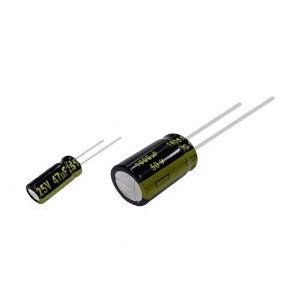

Panasonic FM-A Series EEUFM1H151E
Model
:
EEUFM1H151E
Catalogue
FM-A Series Catalogue English (Download)
FM-A Series Catalogue Chinese (Download)
FM-A Series Catalogue Japanese (Download)
3D Data
3D EEUFM1H151E (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUFM1H151E
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
FM-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
10.00mm
Length
12.50mm
Electrical
Capacitance
150.00µf
Impedance-1 freq.
100000Hz
Impedance-1 Max.
42mΩ
Rated Ripple Current-1
1170mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.1
Rated voltage
50.0V
Leakage current .Max
75µA
Environmental
Category temperature range
－40℃ ～ ＋105°C
Packaging
Min. Packaging (Pcs)
4000
