Capacitor
Aluminum Electrolytic Capacitors (Radial Lead Type)
EEUFM1E470B
Weight:
0
g

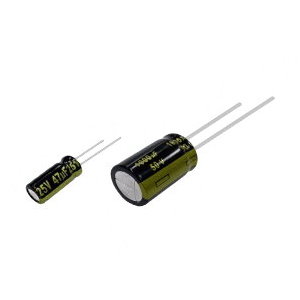

Panasonic FM-A Series EEUFM1E470B
Model
:
EEUFM1E470B
Catalogue
FM-A Series Catalogue English (Download)
FM-A Series Catalogue Chinese (Download)
3D Data
3D EEUFM1E470B (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUFM1E470B
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
FM-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
5.00mm
Length
11.00mm
Electrical
Capacitance
47.00µf
Impedance-1 freq.
100000Hz
Impedance-1 Max.
300mΩ
Rated Ripple Current-1
280mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.14
Rated voltage
25.0V
Leakage current .Max
11.8µA
Environmental
Category temperature range
－40℃ ～ ＋105°C
Packaging
Min. Packaging (Pcs)
2000
