Capacitor
Aluminum Electrolytic Capacitors (Radial Lead Type)
EEUFM0J562LE
Weight:
0
g

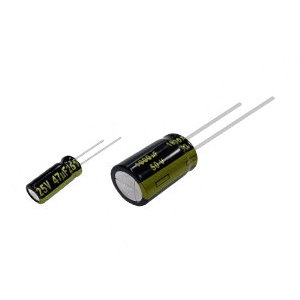

Panasonic FM-A Series EEUFM0J562LE
Model
:
EEUFM0J562LE
Catalogue
FM-A Series Catalogue English (Download)
FM-A Series Catalogue Chinese (Download)
FM-A Series Catalogue Japanese (Download)
3D Data
3D EEUFM0J562LE (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUFM0J562LE
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
FM-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
12.50mm
Length
35.00mm
Electrical
Capacitance
5600.00µF
Impedance-1 freq.
100000Hz
Impedance-1 Max.
12mΩ
Rated Ripple Current-1
3750mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.3
Rated voltage
6.3V
Leakage current .Max
352.8µA
Environmental
Category temperature range
－40℃ ～ ＋105°C
Packaging
Min. Packaging (Pcs)
7000
