Capacitor
Aluminum Electrolytic Capacitors (Radial Lead Type)
EEUFK1V181B
Weight:
1.08
g

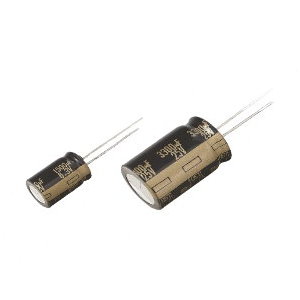

Panasonic FK-A Series EEUFK1V181B
Model
:
EEUFK1V181B
Catalogue
FK-A Series Catalogue English (Download)
FK-A Series Catalogue Chinese (Download)
3D Data
3D EEUFK1V181B (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUFK1V181B
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
FK-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
8.00mm
Length
11.50mm
Electrical
Capacitance
180.00µf
Impedance-1 freq.
100000Hz
Impedance-1 Max.
90mΩ
Rated Ripple Current-1
630mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Endurance
3000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
35.0V
Leakage current .Max
63µA
Environmental
Category temperature range
－55℃ ～ ＋105°C
Packaging
Packing Specification
Lead taping (ammo packing), standard
Min. Packaging (Pcs)
1000
