Capacitor
Aluminum Electrolytic Capacitors (Radial Lead Type)
EEUFK1C681E
Weight:
1.61
g

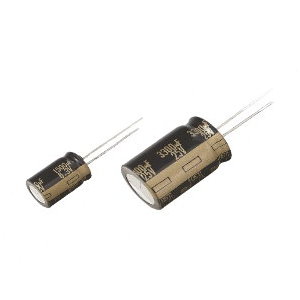

Panasonic FK-A Series EEUFK1C681E
Model
:
EEUFK1C681E
Catalogue
FK-A Series Catalogue English (Download)
FK-A Series Catalogue Chinese (Download)
FK-A Series Catalogue Japanese (Download)
3D Data
3D EEUFK1C681E (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUFK1C681E
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
FK-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
10.00mm
Length
12.50mm
Electrical
Capacitance
680.00µf
Impedance-1 freq.
100000Hz
Impedance-1 Max.
63mΩ
Rated Ripple Current-1
900mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Endurance
4000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.16
Rated voltage
16.0V
Leakage current .Max
108.8µA
Environmental
Category temperature range
－55℃ ～ ＋105°C
Packaging
Packing Specification
Bulk (the lead wire or terminal of snap-in type forming), bag packing
Min. Packaging (Pcs)
200
