Aluminum Electrolytic Capacitors (Radial Lead Type)
EEUFC1V331E
Weight:
2.01
g

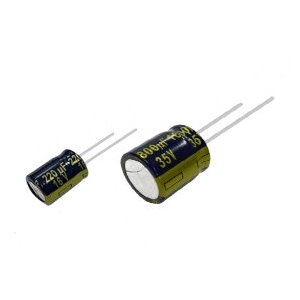

Panasonic FC-A Series EEUFC1V331E
Model
:
EEUFC1V331E
Catalogue
FC-A Series Catalogue English (Download)
FC-A Series Catalogue Chinese (Download)
FC-A Series Catalogue Japanese (Download)
3D Data
3D EEUFC1V331E (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUFC1V331E
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
FC-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
10.00mm
Length
16.00mm
Electrical
Capacitance
330.00µf
Impedance-1 freq.
100000Hz
Impedance-1 Max.
68mΩ
Rated Ripple Current-1
1050mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Endurance
3000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
35.0V
Leakage current .Max
115.5µA
Environmental
Category temperature range
－55℃ ～ ＋105°C
Packaging
Packing Specification
Bulk (the lead wire or terminal of C typre forming), bag packing
Min. Packaging (Pcs)
200
