EEUFC0J562B
Weight:
6.11
g

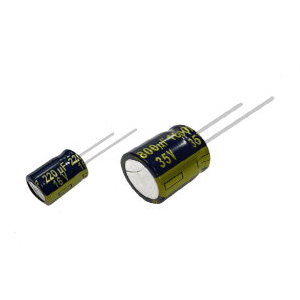

Panasonic FC-A Series EEUFC0J562B
Model
:
EEUFC0J562B
Catalogue
FC-A Series Catalogue English (Download)
FC-A Series Catalogue Chinese (Download)
FC-A Series Catalogue Japanese (Download)
3D Data
3D EEUFC0J562B (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUFC0J562B
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
FC-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
7.5mm
Diameter
16.00mm
Length
20.00mm
Electrical
Capacitance
5600.00µF
Impedance-1 freq.
100000Hz
Impedance-1 Max.
29mΩ
Rated Ripple Current-1
2205mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Endurance
5000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.3
Rated voltage
6.3V
Leakage current .Max
352.8µA
Environmental
Category temperature range
－55℃ ～ ＋105°C
Packaging
Packing Specification
Lead taping (ammo packing), standard
Min. Packaging (Pcs)
250
