EEUEE2W330
Weight:
0
g

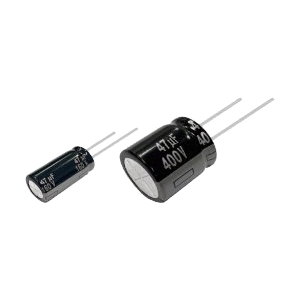

Panasonic EE-A Series EEUEE2W330
Model
:
EEUEE2W330
Catalogue
EE-A Series Catalogue English (Download)
EE-A Series Catalogue Chinese (Download)
EE-A Series Catalogue Japanese (Download)
3D Data
3D EEUEE2W330 (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUEE2W330
General
Appearance
Sheathinges other than a P.V.C. sleeve (metal case)
Series
EE-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
7.5mm
Diameter
16.00mm
Length
25.00mm
Electrical
Capacitance
33.00µf
Rated Ripple Current-1
1000mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.24
Rated voltage
450.0V
Leakage current .Max
901µA
Environmental
Category temperature range
－25℃ ～ ＋105°C
Packaging
Min. Packaging (Pcs)
10000
