EEUEE2V820S
Weight:
0
g

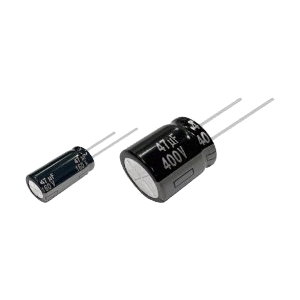

Panasonic EE-A Series EEUEE2V820S
Model
:
EEUEE2V820S
Catalogue
EE-A Series Catalogue English (Download)
EE-A Series Catalogue Chinese (Download)
EE-A Series Catalogue Japanese (Download)
3D Data
3D EEUEE2V820S (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUEE2V820S
General
Appearance
Sheathinges other than a P.V.C. sleeve (metal case)
Series
EE-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
7.5mm
Diameter
18.00mm
Length
25.00mm
Electrical
Capacitance
82.00µf
Rated Ripple Current-1
1530mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.2
Rated voltage
350.0V
Leakage current .Max
1732µA
Environmental
Category temperature range
－25℃ ～ ＋105°C
Packaging
Min. Packaging (Pcs)
10000
