EEUED2W330S
Weight:
0
g

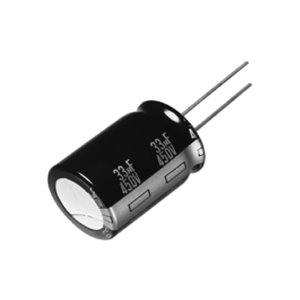

Panasonic ED-A Series EEUED2W330S
Model
:
EEUED2W330S
Catalogue
ED-A Series Catalogue English (Download)
ED-A Series Catalogue Chinese (Download)
3D Data
3D EEUED2W330S (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUED2W330S
General
Appearance
Sheathinges other than a P.V.C. sleeve (metal case)
Series
ED-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
7.5mm
Diameter
18.00mm
Length
25.00mm
Electrical
Capacitance
33.00µf
Rated Ripple Current-1
340mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.24
Rated voltage
450.0V
Leakage current .Max
901µA
Environmental
Category temperature range
－25℃ ～ ＋105°C
Packaging
Min. Packaging (Pcs)
10000
