Capacitor
Aluminum Electrolytic Capacitors (Radial Lead Type)
EEUEB1JR47H
Weight:
0
g

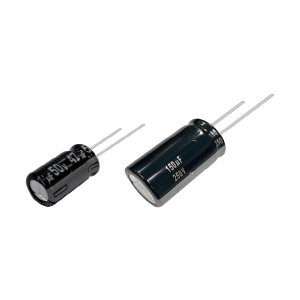

Panasonic EB-A Series EEUEB1JR47H
Model
:
EEUEB1JR47H
Catalogue
EB-A Series Catalogue English (Download)
EB-A Series Catalogue Chinese (Download)
EB-A Series Catalogue Japanese (Download)
3D Data
3D EEUEB1JR47H (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEUEB1JR47H
General
Appearance
P.E.T. sleeve sheathing (metal case)
Series
EB-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
2.5mm
Diameter
5.00mm
Length
15.00mm
Electrical
Capacitance
0.47μF
Rated Ripple Current-1
6mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
120Hz
Endurance
7000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
63.0V
Leakage current .Max
3µA
Environmental
Category temperature range
－40℃ ～ ＋105°C
Packaging
Packing Specification
Lead taping (ammo packing), F=2.5mm
Min. Packaging (Pcs)
2000
