Capacitor
Hybrid Capacitors
EEHZV1V271V
Weight:
1.64
g

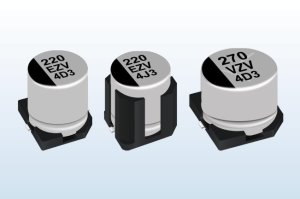

Panasonic ZV (High temp. reflow) Series EEHZV1V271V
Model
:
EEHZV1V271V
Catalogue
ZV (High temp. reflow) Series Catalogue English (Download)
ZV (High temp. reflow) Series Catalogue Chinese (Download)
ZV (High temp. reflow) Series Catalogue Japanese (Download)
3D Data
3D EEHZV1V271V (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEHZV1V271V
General
Appearance
Sheathless (metal case)
Series
ZV (High temp. reflow)
Mounting
Mounting Method
Surface mount type (vertical mount style)
Dimensions
Diameter
10.00mm
Length
10.50mm
Electrical
Capacitance
270.00µf
Equivalent Series Resistance-1 (E.S.R.) freq.
100000Hz
Rated Ripple Current-1
4600mA
Rated ripple current-1 (unit)
ｍArms at 125 ℃
Rated ripple current-1 freq.
100000Hz
Rated Ripple Current-2
3400mA
Rated ripple current-2 (unit)
ｍArms at 135 ℃
Rated ripple current-2 freq.
100000Hz
Endurance
4000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
35.0V
Leakage current .Max
94.5µA
Environmental
Category temperature range
－55℃ ～ ＋135°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
Min. Packaging (Pcs)
500
