EEHZT1E561UV
Weight:
1.64
g

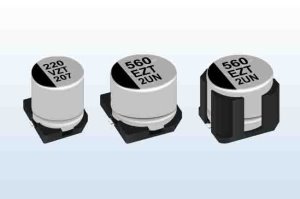

Panasonic ZTU (High temp. reflow) Series EEHZT1E561UV
Model
:
EEHZT1E561UV
Catalogue
ZTU (High temp. reflow) Series Catalogue English (Download)
ZTU (High temp. reflow) Series Catalogue Chinese (Download)
ZTU (High temp. reflow) Series Catalogue Japanese (Download)
3D Data
3D EEHZT1E561UV (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEHZT1E561UV
General
Appearance
Sheathless (metal case)
Series
ZTU (High temp. reflow)
Mounting
Mounting Method
Surface mount type (vertical mount style)
Dimensions
Diameter
10.00mm
Length
10.50mm
Electrical
Capacitance
560.00µf
Equivalent Series Resistance-1 (E.S.R.) freq.
100000Hz
Rated Ripple Current-1
3500mA
Rated ripple current-1 (unit)
ｍArms at 125 ℃
Rated ripple current-1 freq.
100000Hz
Rated Ripple Current-2
2200mA
Rated ripple current-2 (unit)
ｍArms at 135 ℃
Rated ripple current-2 freq.
100000Hz
Endurance
4000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.14
Rated voltage
25.0V
Leakage current .Max
140.0µA
Environmental
Category temperature range
－55℃ ～ ＋135°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
Min. Packaging (Pcs)
500
