Capacitor
Hybrid Capacitors
EEHZS1V331V
Weight:
1.87
g

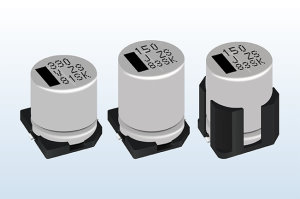

Panasonic ZS (High temp. reflow) Series EEHZS1V331V
Model
:
EEHZS1V331V
Catalogue
ZS (High temp. reflow) Series Catalogue English (Download)
ZS (High temp. reflow) Series Catalogue Chinese (Download)
ZS (High temp. reflow) Series Catalogue Japanese (Download)
3D Data
3D EEHZS1V331V (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEHZS1V331V
General
Appearance
Sheathless (metal case)
Series
ZS (High temp. reflow)
Mounting
Mounting Method
Surface mount type (vertical mount style)
Dimensions
Diameter
10.00mm
Length
12.80mm
Electrical
Capacitance
330.00µf
Equivalent Series Resistance-1 (E.S.R.) freq.
100000Hz
Rated Ripple Current-1
3500mA
Rated ripple current-1 (unit)
ｍArms at 125 ℃
Rated ripple current-1 freq.
100000Hz
Rated Ripple Current-2
2500mA
Rated ripple current-2 (unit)
ｍArms at 135 ℃
Rated ripple current-2 freq.
100000Hz
Endurance
4000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.12
Rated voltage
35.0V
Leakage current .Max
115.5µA
Environmental
Category temperature range
－55℃ ～ ＋135°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
Min. Packaging (Pcs)
400
