EEHZL1E151P
Weight:
0.33
g

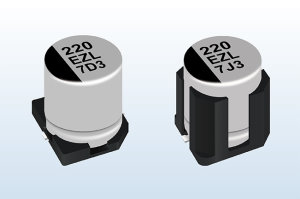

Panasonic ZL (High temp. reflow) Series EEHZL1E151P
Model
:
EEHZL1E151P
Catalogue
ZL (High temp. reflow) Series Catalogue English (Download)
ZL (High temp. reflow) Series Catalogue Chinese (Download)
ZL (High temp. reflow) Series Catalogue Japanese (Download)
3D Data
3D EEHZL1E151P (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEHZL1E151P
General
Appearance
Sheathless (metal case)
Series
ZL (High temp. reflow)
Mounting
Mounting Method
Surface mount type (vertical mount style)
Dimensions
Diameter
6.30mm
Length
5.80mm
Electrical
Capacitance
150.00µf
Equivalent Series Resistance-1 (E.S.R.) freq.
100000Hz
Rated Ripple Current-1
1500mA
Rated ripple current-1 (unit)
ｍArms at 125 ℃
Rated ripple current-1 freq.
100000Hz
Rated Ripple Current-2
800mA
Rated ripple current-2 (unit)
ｍArms at 135 ℃
Rated ripple current-2 freq.
100000Hz
Endurance
2000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.14
Rated voltage
25.0V
Leakage current .Max
37.5µA
Environmental
Category temperature range
－55℃ ～ ＋135°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
Min. Packaging (Pcs)
1000
