EEHZC1J820V
Weight:
1.64
g

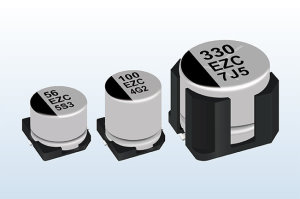

Panasonic ZC (High temp. reflow) Series EEHZC1J820V
Model
:
EEHZC1J820V
Catalogue
ZC (High temp. reflow) Series Catalogue English (Download)
ZC (High temp. reflow) Series Catalogue Chinese (Download)
ZC (High temp. reflow) Series Catalogue Japanese (Download)
3D Data
3D EEHZC1J820V (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEHZC1J820V
General
Appearance
Sheathless (metal case)
Series
ZC (High temp. reflow)
Mounting
Mounting Method
Surface mount type (vertical mount style)
Dimensions
Diameter
10.00mm
Length
10.50mm
Electrical
Capacitance
82.00µf
Equivalent Series Resistance-1 (E.S.R.) freq.
100000Hz
Rated Ripple Current-1
1400mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Endurance
4000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.08
Rated voltage
63.0V
Leakage current .Max
51.6µA
Environmental
Category temperature range
－55℃ ～ ＋125°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
Min. Packaging (Pcs)
500
