EEHZA1E151P
Weight:
0.91
g

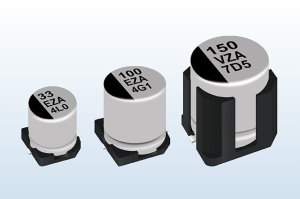

Panasonic ZA (High temp. reflow) Series EEHZA1E151P
Model
:
EEHZA1E151P
Catalogue
ZA (High temp. reflow) Series Catalogue English (Download)
ZA (High temp. reflow) Series Catalogue Chinese (Download)
ZA (High temp. reflow) Series Catalogue Japanese (Download)
3D Data
3D EEHZA1E151P (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEHZA1E151P
General
Appearance
Sheathless (metal case)
Series
ZA (High temp. reflow)
Mounting
Mounting Method
Surface mount type (vertical mount style)
Dimensions
Diameter
8.00mm
Length
10.20mm
Electrical
Capacitance
150.00µf
Equivalent Series Resistance-1 (E.S.R.) freq.
100000Hz
Rated Ripple Current-1
2300mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Endurance
10000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.14
Rated voltage
25.0V
Leakage current .Max
37.5µA
Environmental
Category temperature range
－55℃ ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
Min. Packaging (Pcs)
500
