EEHAZSJ181UB
Weight:
2.15
g

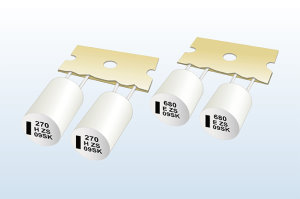

Panasonic ZSU-A Series EEHAZSJ181UB
Model
:
EEHAZSJ181UB
Catalogue
ZSU-A Series Catalogue English (Download)
3D Data
3D EEHAZSJ181UB (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEHAZSJ181UB
General
Appearance
Sheathless (metal case)
Series
ZSU-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
10.00mm
Length
15.70mm
Electrical
Capacitance
180.00µf
Equivalent Series Resistance-1 (E.S.R.) freq.
100000Hz
Rated Ripple Current-1
3500mA
Rated ripple current-1 (unit)
ｍArms at 125 ℃
Rated ripple current-1 freq.
100000Hz
Rated Ripple Current-2
2400mA
Rated ripple current-2 (unit)
ｍArms at 135 ℃
Rated ripple current-2 freq.
100000Hz
Endurance
4000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.08
Rated voltage
63.0V
Leakage current .Max
113.4µA
Environmental
Category temperature range
－55℃ ～ ＋135°C
Packaging
Packing Specification
Lead taping (ammo packing), standard
Min. Packaging (Pcs)
500
