Weight: 0.98 g

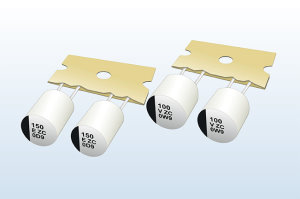

Panasonic ZC-A Series EEHAZC1J470B

Model: EEHAZC1J470B

Catalogue

Catalogue

ZC-A Series Catalogue English (Download)

3D Data

3D Data

3D EEHAZC1J470B (Download)

Contact us about this product

Manufacturer
Panasonic

Model
EEHAZC1J470B

General

Appearance
Sheathless (metal case)

Series
ZC-A

Mounting

Mounting Method
Radial lead type

Dimensions

Lead (terminal) Pitch
3.5mm

Diameter
8.00mm

Length
9.50mm

Electrical

Capacitance
47.00µf

Equivalent Series Resistance-1 (E.S.R.) freq.
100000Hz

Rated Ripple Current-1
1100mA

Rated ripple current-1 (unit)
ｍArms

Rated ripple current-1 freq.
100000Hz

Endurance
4000h

Capacitance Tolerance
±20%

Polarity type
Polar

Dissipation Factor (DF) Max.
0.08

Rated voltage
63.0V

Leakage current .Max
29.6µA

Environmental

Category temperature range
－55℃ ～＋125°C

Packaging

Packing Specification
Lead taping (ammo packing), standard

Min. Packaging (Pcs)
1000
