EEHAZC1E331B
Weight:
1.25
g

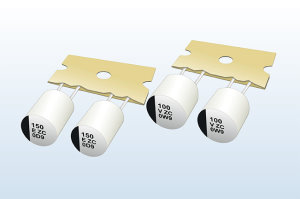

Panasonic ZC-A Series EEHAZC1E331B
Model
:
EEHAZC1E331B
Catalogue
ZC-A Series Catalogue English (Download)
3D Data
3D EEHAZC1E331B (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEHAZC1E331B
General
Appearance
Sheathless (metal case)
Series
ZC-A
Mounting
Mounting Method
Radial lead type
Dimensions
Lead (terminal) Pitch
5.0mm
Diameter
10.00mm
Length
9.50mm
Electrical
Capacitance
330.00µf
Equivalent Series Resistance-1 (E.S.R.) freq.
100000Hz
Rated Ripple Current-1
2000mA
Rated ripple current-1 (unit)
ｍArms
Rated ripple current-1 freq.
100000Hz
Endurance
4000h
Capacitance Tolerance
±20%
Polarity type
Polar
Dissipation Factor (DF) Max.
0.14
Rated voltage
25.0V
Leakage current .Max
82.5µA
Environmental
Category temperature range
－55℃ ～ ＋125°C
Packaging
Packing Specification
Lead taping (ammo packing), standard
Min. Packaging (Pcs)
500
