Capacitor
Solid Capacitor
EEFSX0J221P
Weight:
0
g

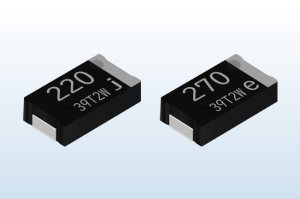

Panasonic SX Series EEFSX0J221P
Model
:
EEFSX0J221P
Catalogue
SX Series Catalogue Japanese (Download)
3D Data
3D EEFSX0J221P (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEFSX0J221P
General
Series
SX
Mounting
Mounting Method
Surface mount (rectangular style)
Dimensions
Length
7.30mm
Width
4.30mm
Height
1.90mm
Electrical
Capacitance
220.00µf
Endurance
2000h
Capacitance Tolerance
±20%
Dissipation Factor (DF) Max.
0.06
Rated voltage
6.3V
Equivalent Series Resistance (E.S.R.) Max.
9mΩ
Equivalent Series Resistance (E.S.R.) freq.
100000Hz
Leakage current .Max
138.6µA
Rated ripple current
6.3A
Rated ripple current freq.
100000Hz
Rated ripple current (unit)
Arms
Environmental
Category temperature range
－55 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing, seal packing of prevention of moisture)
Min. Packaging (Pcs)
500
