Capacitor
Solid Capacitor
EEFHX0E331P6
Weight:
0
g

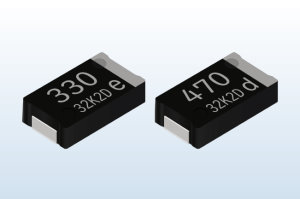

Panasonic HX Series EEFHX0E331P6
Model
:
EEFHX0E331P6
Catalogue
HX Series Catalogue Japanese (Download)
3D Data
3D EEFHX0E331P6 (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEFHX0E331P6
General
Series
HX
Mounting
Mounting Method
Surface mount (rectangular style)
Dimensions
Length
7.30mm
Width
4.30mm
Height
1.90mm
Electrical
Capacitance
330.00µf
Endurance
1000h
Capacitance Tolerance
±20%
Dissipation Factor (DF) Max.
0.1
Rated voltage
2.5V
Equivalent Series Resistance (E.S.R.) Max.
6mΩ
Equivalent Series Resistance (E.S.R.) freq.
100000Hz
Leakage current .Max
82.5µA
Rated ripple current
7.5A
Rated ripple current freq.
100000Hz
Rated ripple current (unit)
Arms
Environmental
Category temperature range
－55 ～ ＋125°C
Packaging
Packing Specification
Embossed carrier taping (reel packing, seal packing of prevention of moisture)
Min. Packaging (Pcs)
500
