Capacitor
Solid Capacitor
EEFCS1V100P
Weight:
0
g

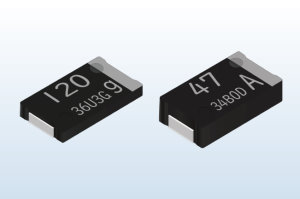

Panasonic CS Series EEFCS1V100P
Model
:
EEFCS1V100P
Catalogue
CS Series Catalogue Japanese (Download)
3D Data
3D EEFCS1V100P (Download)
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEFCS1V100P
General
Series
CS
Mounting
Mounting Method
Surface mount (rectangular style)
Dimensions
Length
7.30mm
Width
4.30mm
Height
1.10mm
Electrical
Capacitance
10.00µf
Endurance
2000h
Capacitance Tolerance
±20%
Dissipation Factor (DF) Max.
0.06
Rated voltage
35.0V
Equivalent Series Resistance (E.S.R.) Max.
40mΩ
Equivalent Series Resistance (E.S.R.) freq.
100000Hz
Leakage current .Max
105µA
Rated ripple current
3.2A
Rated ripple current freq.
100000Hz
Rated ripple current (unit)
Arms
Environmental
Category temperature range
－55 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing, seal packing of prevention of moisture)
Min. Packaging (Pcs)
500
