Capacitor
Aluminum Electrolytic Capacitors
EEETQV101XAP

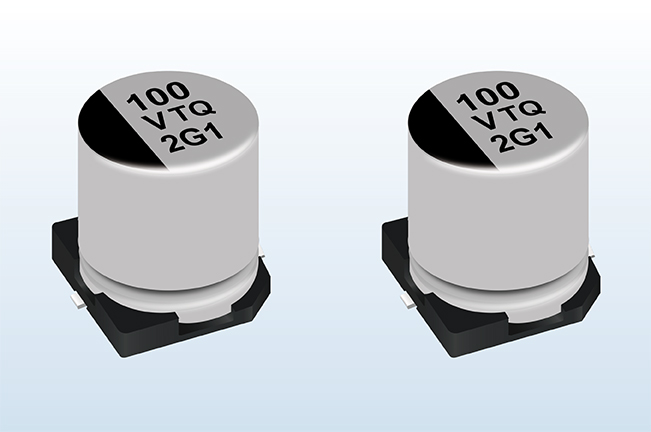

Panasonic TQ (High temp. reflow) Series EEETQV101XAP
Model
:
EEETQV101XAP
Catalog
Catalogue
TQ (High temp. reflow) Series Catalogue English (Download)
TQ (High temp. reflow) Series Catalogue Chinese (Download)
TQ (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEETQV101XAP
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
6.30mm
Length
7.70mm
Electrical
Capacitance
100µf
Leakage current .Max
35µA
Rated ripple current freq.
100000Hz
Rated ripple current
197.0mA
Rated voltage
35.0V
Polarity type
Polar
Environmental
Category temperature range
－40℃ ～ ＋125℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
