Capacitor
Aluminum Electrolytic Capacitors
EEETK1C331AQ

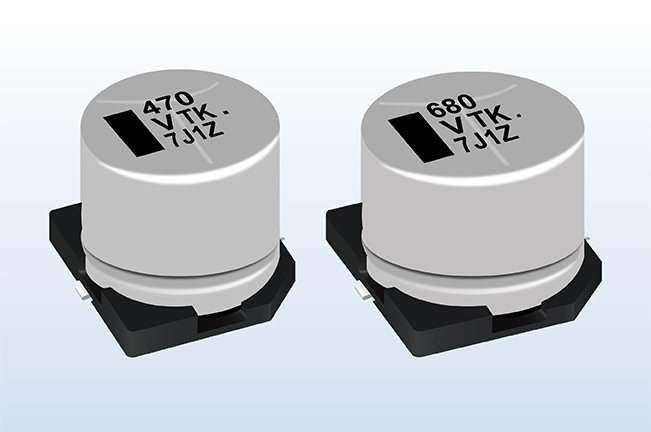

Panasonic TK [Medium-size] (High temp. reflow) Series EEETK1C331AQ
Model
:
EEETK1C331AQ
Catalog
Catalogue
TK [Medium-size] (High temp. reflow) Series Catalogue English (Download)
TK [Medium-size] (High temp. reflow) Series Catalogue Chinese (Download)
TK [Medium-size] (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEETK1C331AQ
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
12.50mm
Length
13.50mm
Electrical
Capacitance
330µf
Leakage current .Max
52.8µA
Rated ripple current freq.
100000Hz
Rated ripple current
800.0mA
Rated voltage
16.0V
Polarity type
Polar
Environmental
Category temperature range
－40℃ ～ ＋125℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
