Capacitor
Aluminum Electrolytic Capacitors
EEETK1C221UV

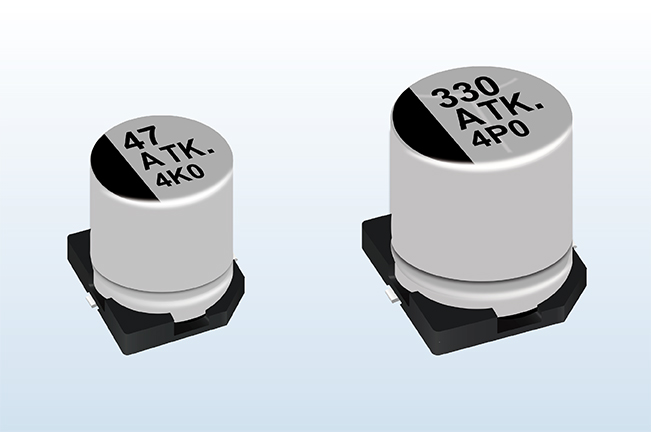

Panasonic TK Series EEETK1C221UV
Model
:
EEETK1C221UV
Catalog
Catalogue
TK Series Catalogue English (Download)
TK Series Catalogue Chinese (Download)
TK Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEETK1C221UV
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
8.00mm
Length
10.50mm
Electrical
Capacitance
220µf
Leakage current .Max
35.2µA
Rated ripple current freq.
100000Hz
Rated ripple current
197.0mA
Rated voltage
16.0V
Polarity type
Polar
Environmental
Category temperature range
－40℃ ～ ＋125℃
Packaging
Packing Specification
Embossed carrier taping (reel packing)
