Aluminum Electrolytic Capacitors
EEEHD1H3R3R

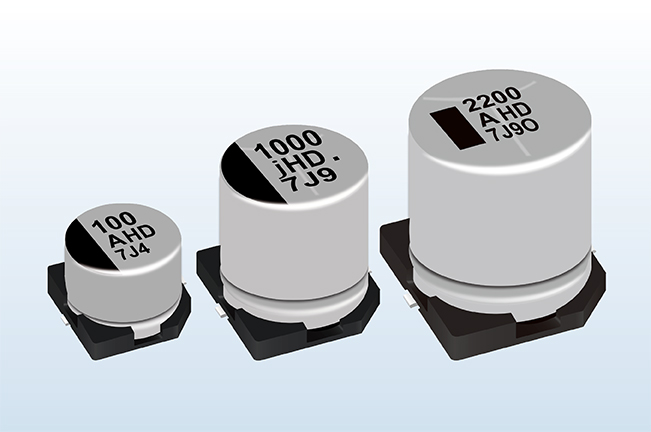

Panasonic HD (High temp. reflow) Series EEEHD1H3R3R
Model
:
EEEHD1H3R3R
Catalog
Catalogue
HD (High temp. reflow) Series Catalogue English (Download)
HD (High temp. reflow) Series Catalogue Chinese (Download)
HD (High temp. reflow) Series Catalogue Japanese (Download)
Specification
3D
Add to Basket
In your cart
Add to Basket
Contact us about this product
Description
Description
Manufacturer
Panasonic
Model
EEEHD1H3R3R
Mounting
Mounting Method
Surface Mount
Dimensions
Diameter
4.00mm
Length
5.80mm
Electrical
Capacitance
3.3µf
Leakage current .Max
3µA
Rated ripple current freq.
120Hz
Rated ripple current
16.0mA
Rated voltage
50.0V
Polarity type
Polar
Environmental
Category temperature range
－40 ～ ＋105°C
Packaging
Packing Specification
Embossed carrier taping (reel packing)
